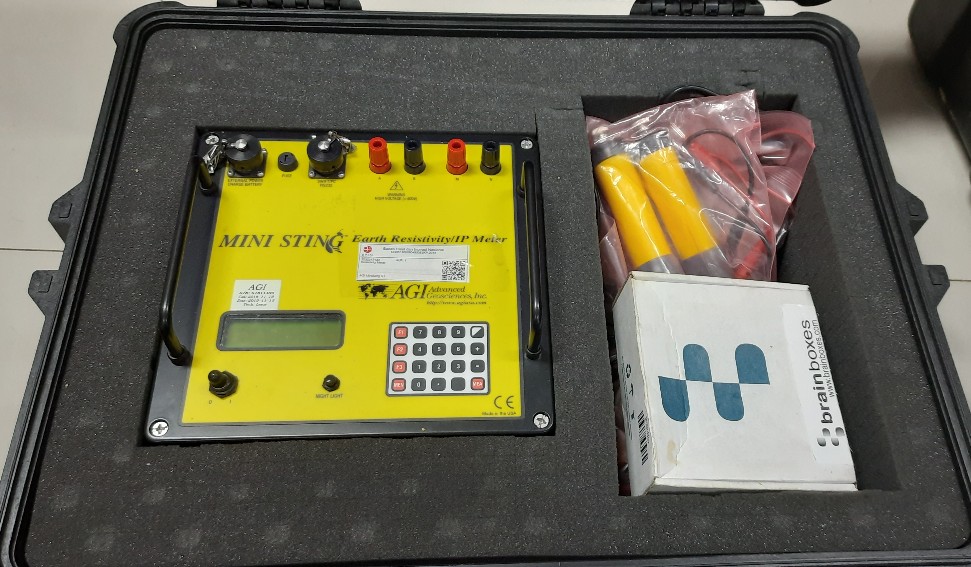

AGI MiniSting Geoelectrical Instruments
Description
The AGI MiniSting is a high-power, single-channel induced polarization (IP) and electrical resistivity instrument used for groundwater investigations, land network studies, soil resistivity testing for corrosion protection design, and soil testing.
This instrument is designed for ease of use, light portability, low cost, and high accuracy, making it suitable for low-labor exploration, educational demonstrations, and training.
This instrument is recommended for Vertical Electrical Sounding (VES), profiling, the IEEE Fall-Off-Potential (FOP) method, and the four-pin Wenner soil test (ASTM G57) for soil resistivity.
Description
The AGI MiniSting is a high-power, single-channel induced polarization (IP) and electrical resistivity instrument used for groundwater investigations, land network studies, soil resistivity testing for corrosion protection design, and soil testing.
This instrument is designed for ease of use, light portability, low cost, and high accuracy, making it suitable for low-labor exploration, educational demonstrations, and training.
This instrument is recommended for Vertical Electrical Sounding (VES), profiling, the IEEE Fall-Off-Potential (FOP) method, and the four-pin Wenner soil test (ASTM G57) for soil resistivity.
Specifications
- Measurement Modes: Apparent resistivity, resistance, voltage (Spontaneous Potential), induced polarization (IP), battery voltage
- Measurement Range: 400 k to 0.1 milli Ohms (resistance), 0 - 500 V full scale voltage
- Measurement Resolution: maximum 30 nV, depending on voltage level
- Output Current: 1 - 2 - 5 - 10 - 20 - 50 - 100 - 200 - 500 mA
- Output Voltage: Selectable high voltage limit (800 Vp-p) or low voltage (320 Vp-p)
- Input Impedance: > 20 MΩ
- Input Voltage: maximum 500 V
- SP Compensation: Automatic cancellation of SP voltage during resistivity measurement. Constant and linearly varying SP is fully cancelled
- IP Measurement Type: Time domain chargeability (M), six time slots measured and stored in memory
- IP Current Transmission: ON+, OFF, ON-, OFF
- IP Time Cycle: 1, 2, 4, and 8 seconds
- Measurement Cycle: Moving average of measurements displayed after each cycle. Automatic cycle stop when the reading error drops below a user-set limit or the user-set maximum number of cycles is complete
- Time Base: Selectable time bases of 1.2; 3.6; 7.2; 14.4 seconds
- Signal Processing: Continuous smoothing after each complete cycle
- Noise Suppression: better than 100 dB at F > 20 Hz
- Total Accuracy: better than 1% of reading in most cases (lab)
- Supported Configurations: Resistance, Schlumberger, Wenner, Dipole–dipole, Pole–dipole, Pole–Pole, azimuthal, mise-a-la-masse, SP (absolute) and SP (gradient)
- Memory Capacity: more than 3000 measurement points can be stored
- Connectors: 4 banana plugs for current and potential electrodes, 3 pole KPT for external power, 10 pole KPT for data connection and synchronization
- Power Source: 12 V, 4.5Ah NiMh rechargeable battery, can use external power
- Weight: 6.6 Kg (including battery)
- Dimensions: 255 mm x 255 mm x 123 mm (l x w x h)
Package Contents:
- MiniSting
- Adapter charger
- Connector cable for external power
- Connector cable for data
- USB to serial adapter
- Test resistor
- UFD (USB Flash Drive) containing manual and software

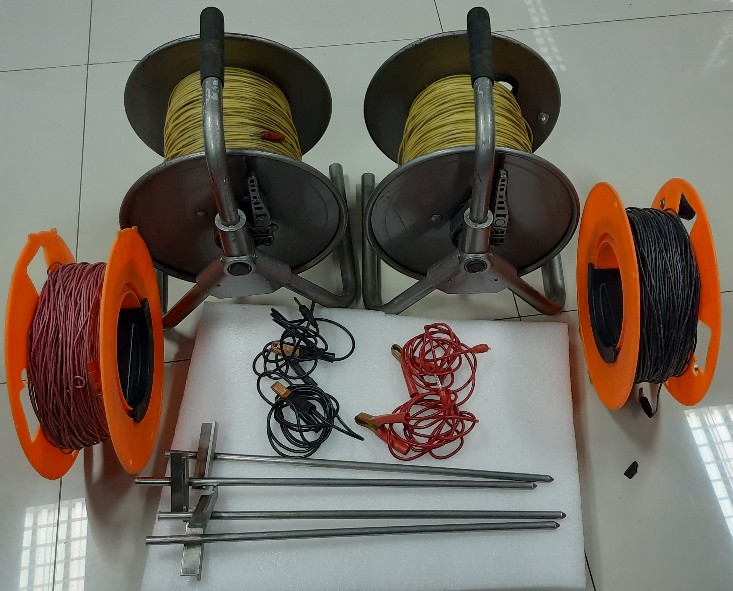

- 4 stainless steel electrode stakes
- 2 rolls of cable for current @ 400 m
- 2 rolls of cable for potential @ 150 m
- 4 jumper cables
- 2 non-polarizable electrodes
- Travel case for the MiniSting
